Need help with mounting a backrest on the snowmobile

Discussion in 'General Fabrication' started by James DePaul, Mar 13, 2017.

  1. James DePaul

    James DePaul New Member

    Joined:
    Mar 13, 2017
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    I picked up a decent back rest with a rack for my snow mobile. It fits decently around the seat in the back and it partially rests on the existing aluminum rack on the back of the tunnel.

    I'm not sure how to best attach it to the snow machine. First of all it's steel and the snow mobile has aluminum so welding it all together is not an option. I'll need to fashion some kind of a steel bracket to bolt it onto the snow machine.

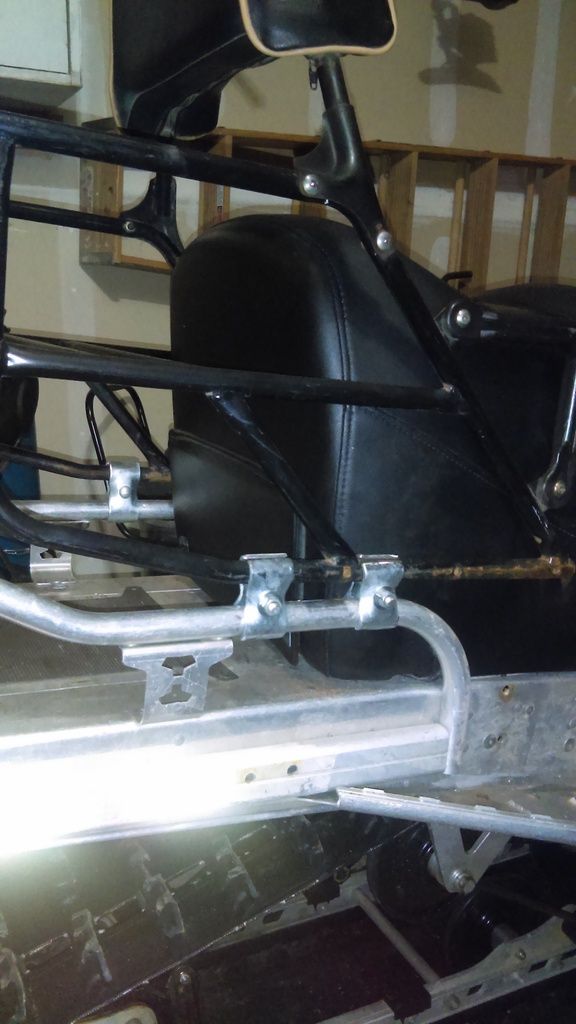

    Here are some pictures of what it looks like loosely sitting on the back of the machine:

    [​IMG]

    [​IMG]

  2. James DePaul

    James DePaul New Member

    Joined:
    Mar 13, 2017
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    Not everybody at once now.... :)

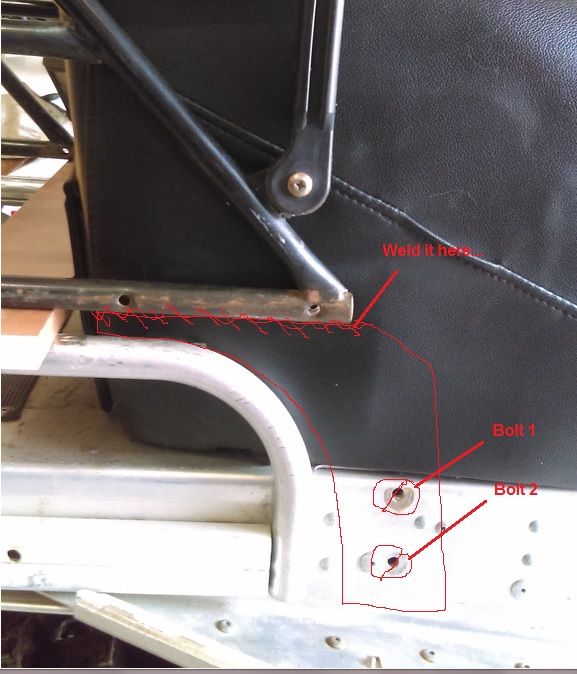

    Ok - I was thinking something like this, for Step 1. Fabricate a steel bracket that would be welded up on top and bolted on the bottom. It would fit around the aluminum tube without touching it. Thus, all the pressure would be transferred to the two bolts that hold it fast to the tunnel. That's step 1. Comments?
    [​IMG]

  3. OcalaWill

    OcalaWill Well-Known Member

    Joined:
    Jun 22, 2016
    Messages:
    206
    Likes Received:
    37
    Trophy Points:
    108
    Exactly what I was thinking. Then maybe some rubber bumpers or split heater hose between the two tubes on each side?

  4. DrewP

    DrewP Member

    Joined:
    Aug 24, 2016
    Messages:
    11
    Likes Received:
    4
    Trophy Points:
    68
    Maybe use the bumpers or hose to stop the rattling and support the back.

  5. James DePaul

    James DePaul New Member

    Joined:
    Mar 13, 2017
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    This is what I ended up with. I've purchased the brackets at Home Depot, some parts for the fence. I've trimmed and bent them to shape and this is what I ended up with. The connection is strong and the rack feels solid even without any connections to the tunnel itself. I think I'll leave it like that and try it out before I mess with.

    [​IMG]

    Arkansas Metal Art likes this.
